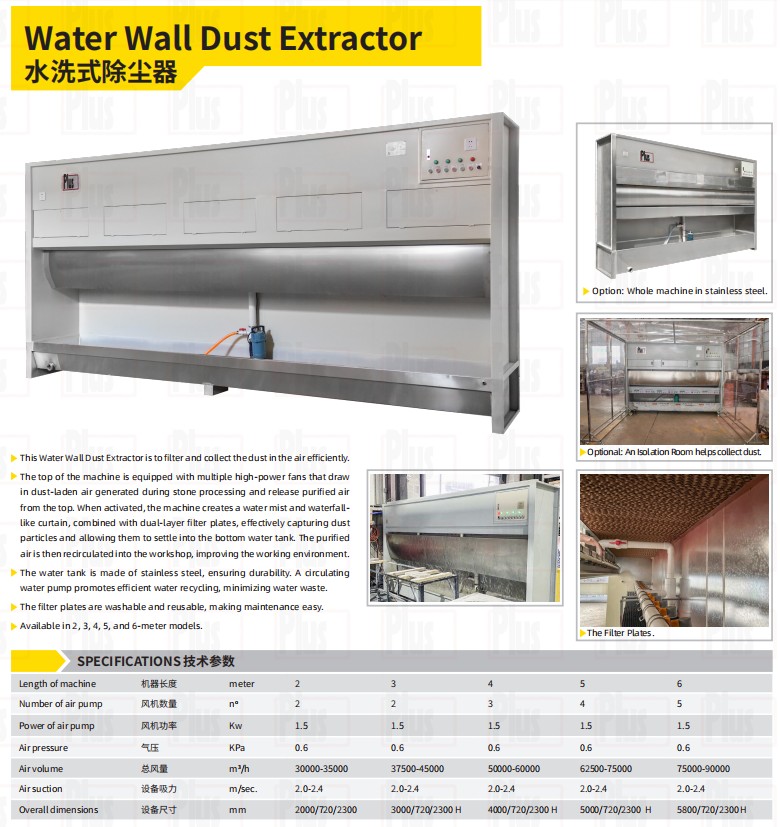

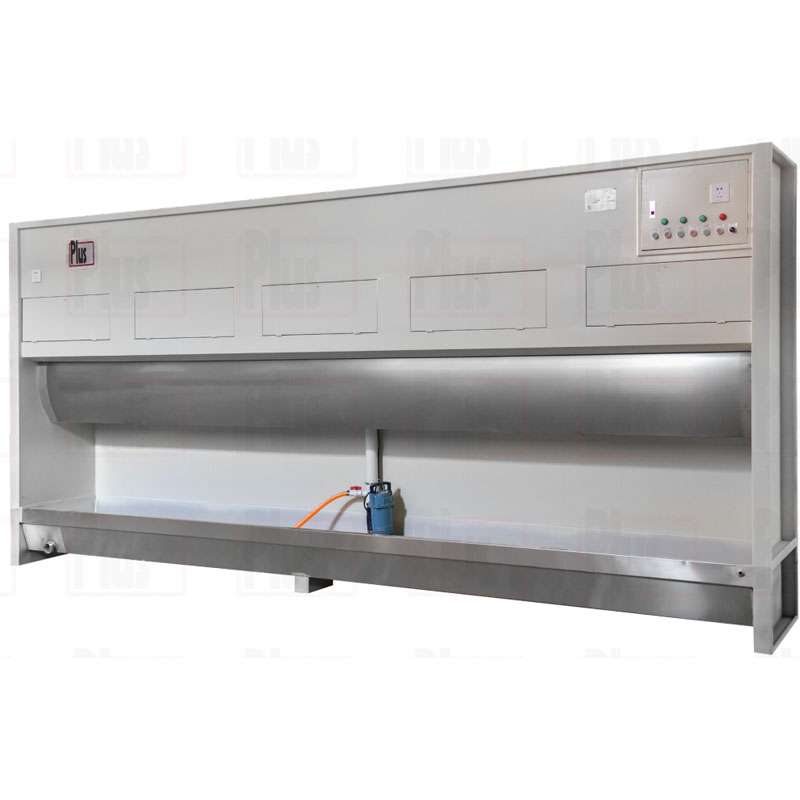

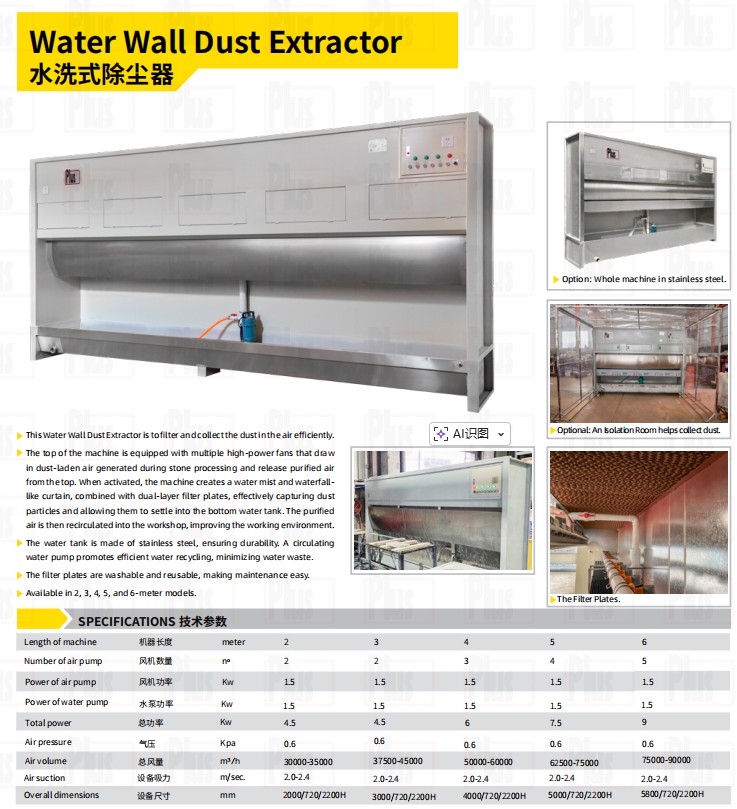

Water Wall Dust Extractor

Protect Your Workers from Silica Dust❗️❗️❗️

Stone cutting, grinding, and polishing release respirable crystalline silica (RCS) into the air — a known cause of silicosis, an irreversible lung disease. The Stoneplus Water Wall Dust Extractor captures

stone dust at the source using water curtain technology, keeping your workshop air clean and your workers safe.

Wet vs Dry: Why Water Curtain?

No filter bags to replace — saving you ongoing maintenance costs and downtime

Who Is This For

Stone factories that need an affordable，low-maintenance dust control solution to keep the workshop clean and comply with environmental regulations.

How It Works

Dust-laden air is drawn through the water curtain，where particles are trapped in the water tank. Clean air is discharged from the top. The water is recycled

within the system,minimizing water consumption.

Core Features

✅ Water Curtain Technology— High-velocity water curtain captures dust particles as air is drawn through the booth. Dust is trapped in water, clean air is released.

✅Stainless Steel Water Tank— Corrosion-resistant stainless steel tank built for years of service in wet stone workshop environments.

✅Dual-Layer Washable Filter Plates — Two layers of filter plates catch remaining particles. Fully washable and reusable — no replacement costs.

✅Automatic Pump Control— Water level and pump operation are automatically managed. Set it and forget it.

✅5 Sizes for Any Workshop — Available in 2m, 3m, 4m, 5m, and 6m widths to match your production line length.

✅Air volume： 37,500–45,000 m³/h for heavy-duty dust extraction

✅CE Certified — Complies with EU safety standards.

✅Optional Upgrades — Full stainless steel construction, isolation room enclosure for maximum dust containment. 304 stainless steel water tank for long service life

Optional: Full stainless steel construction, isolation room enclosure

Applicable Processes

- Bridge saw cutting

- Hand polishing and grinding

- CNC routing and carving

- Edge profiling

- Tombstone engraving

- Any stone fabrication process that generates dust

Options & Customization

- Full stainless steel construction (recommended for high-humidity environments)

- Isolation room enclosure (for maximum dust containment)

- Voltage customization (380V/50Hz standard; 415V/60Hz, 220V, 110V available)

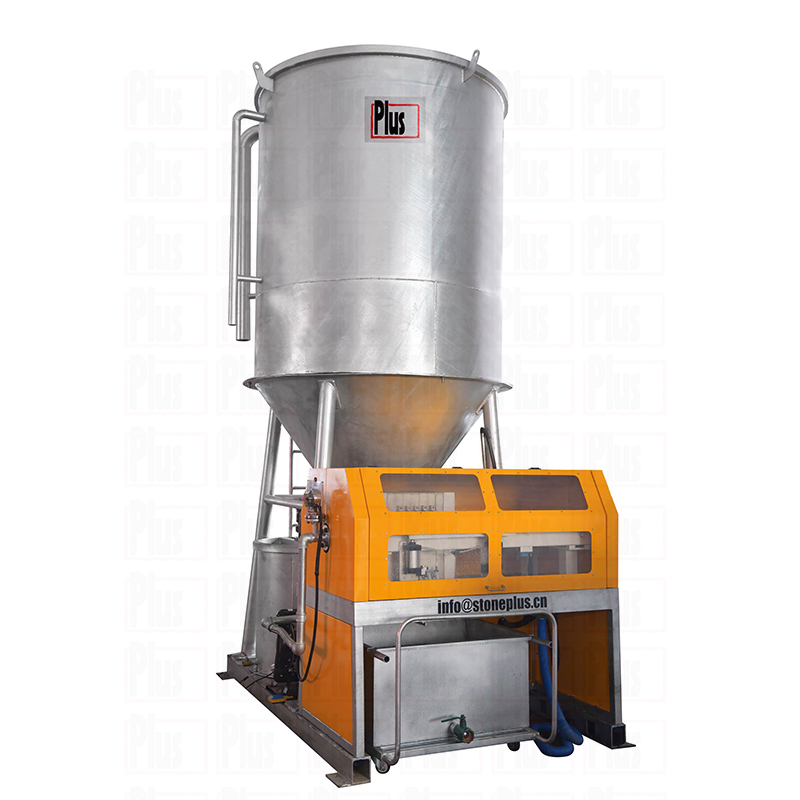

- Combined system with FP505 Water Treatment Plant for complete workshop environmental solution

Key words: Water Wall Dust Extractor, Wet Dust Collector,Stone Dust Collection System, Water Curtain Dust Collector, Stone Workshop Dust Extraction, Silica Dust Collector,

Stone Fabrication Dust Control, Wet Type Dust Collector, Dust Removal Equipment for Stone Factory, Workshop Air Filtration
