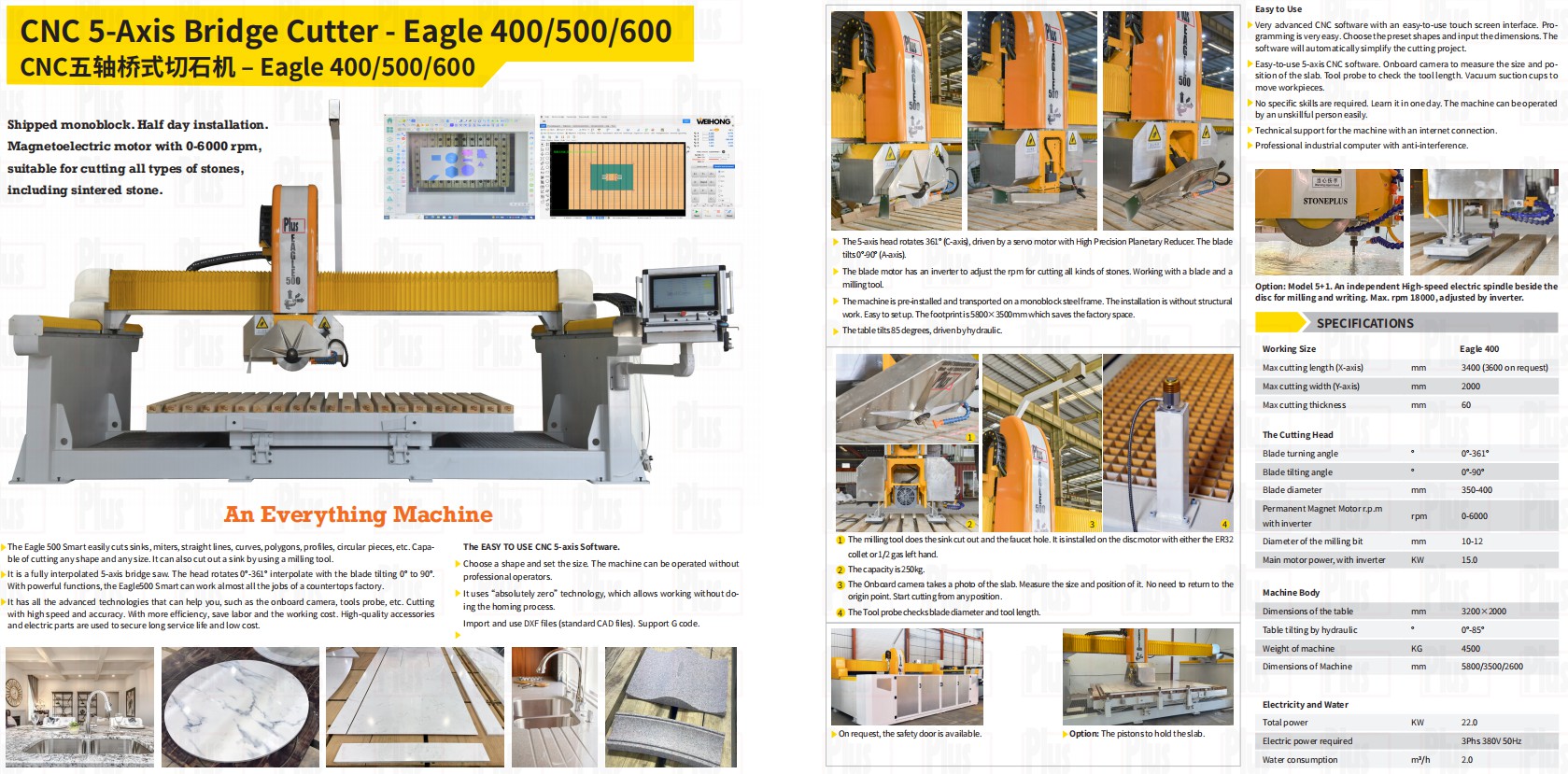

CNC 5-Axis Bridge Cutter - Eagle 400/500/600

One CNC Stone Cutting Machine for Cutting, Mitering and Milling

The Eagle CNC 5-axis bridge cutter is designed for professional stone fabrication, including quartz, marble, granite and other stone slabs. Its multi-axis cutting head handles straight cutting,

angled cutting, mitering, sink cutouts and faucet holes in one machine.

With easy-to-use CNC software, an onboard camera and automatic tool measurement, the Eagle helps stone fabricators reduce manual setup and improve cutting consistency.

Key Features

5-axis CNC cutting head:

● 360-degree head rotation and 0-90-degree blade tilting for flexible stone processing.

Automatic slab measurement:

● The onboard camera measures slab size and cutting position without returning to the machine origin.

Easy CNC operation:

● Import files or draw directly, set the cutting dimensions and simplify the project through the control system.

Cutting and milling in one machine:

● Process sink cutouts, faucet holes and other edge or surface details with the optional milling spindle.

Automatic tool checking:

● The tool probe checks blade diameter and tool length before processing.

Stable monoblock frame:

● Pre-installed steel construction simplifies installation and helps maintain machining stability.

Hydraulic tilting table:

● Tilt the worktable up to 85 degrees for convenient slab loading and handling.

Optional high-speed spindle:

● Up to 18,000 rpm for drilling and milling applications.

Suitable for:

● All kinds of stone countertop fabrication and processing.

● Kitchen countertop and vanity production

● Sink cutouts and faucet holes

● Straight cuts, angled cuts and miter joints, stone shapes.

● Custom stone projects and architectural fabrication

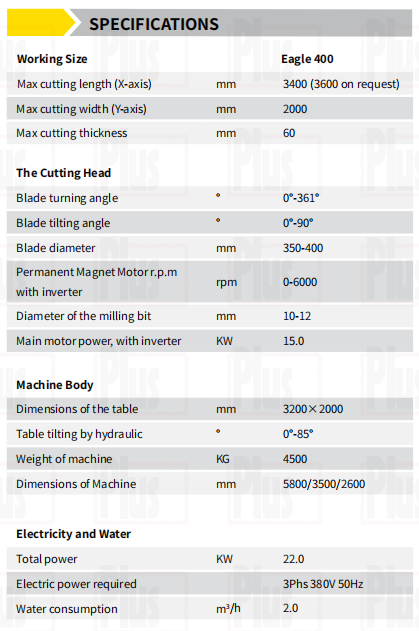

Technical Specifications

Eagle 500 and Eagle 600 configurations are available. Please contact us for the working range and technical configuration of the selected model.

Why Choose the Eagle 5-Axis Bridge Cutter?

The Eagle combines CNC stone cutting, mitering, shapes processing and optional milling in a single production platform. It is a practical choice for fabricators who need accurate slab processing, flexible cutting angles, differend stone shapes and a simpler workflow from measurement to finished part.

Contact us for model selection, machine configuration and a quotation for your stone fabrication project.
